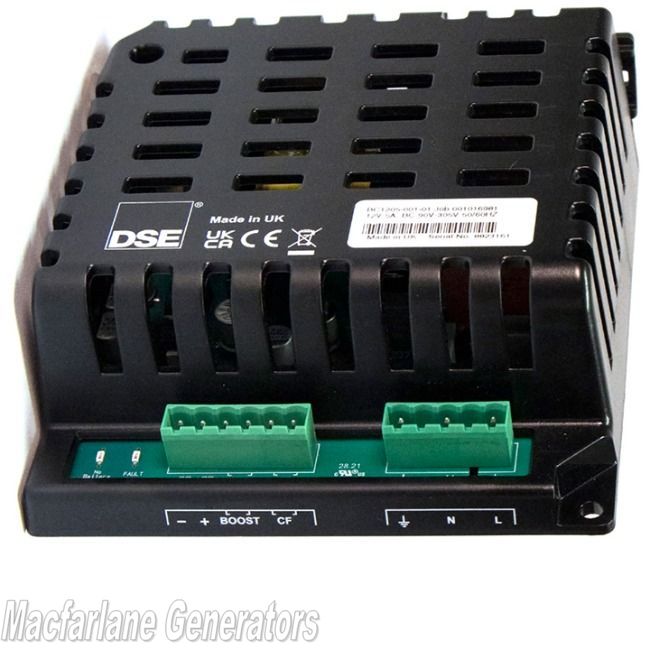

12V DSEBC1205 Deep Sea Electronics Battery Charger
With the Procuret payment platform, you can finance with a minimum of $1,500 and up to $75,000 worth of products and services, subject to terms and credit eligibility criteria. Learn more about our financing options.
Shipping is calculated on weight and dimensions of an order. Shipping will be calculated at the checkout page. In some cases, quotes may be required for shipping. Learn more about our shipping costs.
After written consent has been given by our authorised representative, all defective products are to be returned with freight pre-paid via regular road transport to the branch where the goods were purchased or supplied. Learn more about our return policy.
About the Product
The DSEBC1205 is designed to be permanently connected to a battery, to ensure it maintains a full charge. The charger includes LED indicators on the front that show when there is no battery connected and if a fault condition is present.
The chargers continue to operate during cranking & running and have been designed to accept multiple AC voltage connections. The robust design makes the charger ideally suited to a wide range of markets including heavy and light industrial environments.
Specifications
| Notes | Multi-Stage Intelligent Charging:Constant current- Maximum current available during charge recovery phaseConstant voltageChargers automatically return to float mode when charging is completeLow Output Ripple:Makes the chargers ideal for all battery typesFull Protection:Reverse polarity protection, short circuit protection and current limitingAutomatic recovery after the removal of fault conditionsBoost Mode:Boosts and equalises cell charge improving battery performance and lifeSimple boost connection using on-board terminalsPower Save Mode:Once the battery is fully charged the chargers switch to Eco-Power to save energy | Small and CompactNo moving parts for longer battery charger lifeSwitched mode designCharge fail outputMinimum 80% efficiency throughout full operating rangeParalleling Feature:Multiple modules can be linked together to provide larger current output |
|---|---|
| AC Supply: | Voltage Range: 90 V to 305 V (L-N) DC Output: 5 A DC 12 V DC Ripple and Noise: <3% Vo Efficiency: >80% |
| Regulation: | Line: <1% Load: < 4% Vo |
| Protections: | Short Circuit Reverse Polarity |
| Dimensions: | Overall: 129.6 mm x 138.5 mm x 50 mm, 5.1” x 5.45” x 2.0” Weight: 0.4 kg |
