About the Product

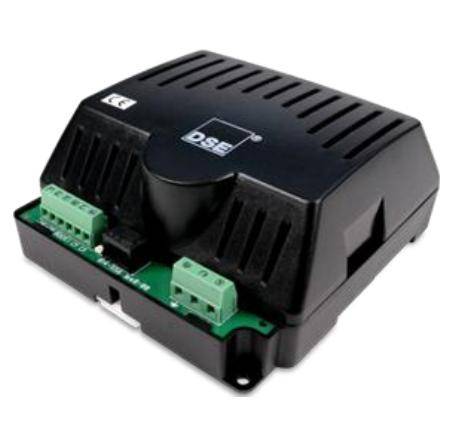

Deep Sea Electronics 24V 5 Amp DSE9255 Battery Charger has been designed to be permanently connected to a battery, keeping it charged to maximum capacity. The chargers can be either mounted via DIN rail or to the chassis, using the fixing holes that are built into the case. The chargers stylish design includes an LED indicator on the front that shows when the charger is in a normal or overload condition. Special Price is valid for a limited time only!
Specifications
| Notes | Multi-Stage Intelligent Charging:• Constant current- Maximum current available during charge recovery phase• Constant voltage• Chargers automatically return to float mode when charging is completeLow Output Ripple:• Makes the chargers ideal for all battery typesFull Protection:• Reverse polarity protection, short circuit protection and current limiting• Automatic recovery after the removal of fault conditionsBoost Mode:• Boosts and equalises cell charge improving battery performance and life• Simple boost connection using on-board terminalsPower Save Mode:• Once the battery is fully charged the chargers switch to Eco-Power to save energy | • Suitable for a wide range of battery types• No moving parts for longer battery charger life• Switched mode design• Charge fail output• Minimum 80% efficiency throughout full operating rangeParalleling Feature:• Multiple modules can be linked together to provide larger current output |
|---|---|
| AC Supply: | Voltage Range: 90 V to 305 V (L-N) DC Output: 5 A DC 24 V DC at 27.4 V DC Ripple and Noise: <1% Efficiency: >80% |
| Regulation: | Line: <0.001% Vo Load: 1% Vo |
| Protections: | Short Circuit Over Voltage Over Current Reverse Polarity |
| Dimensions: | Overall: 136 mm x 140 mm x 63 mm, 5.4” x 5.5” x 2.5” Weight: 0.5 kg |
