3.3mVA Crestchic Loadbank
With the Procuret payment platform, you can finance with a minimum of $1,500 and up to $75,000 worth of products and services, subject to terms and credit eligibility criteria. Learn more about our financing options.
Shipping is calculated on weight and dimensions of an order. Shipping will be calculated at the checkout page. In some cases, quotes may be required for shipping. Learn more about our shipping costs.
After written consent has been given by our authorised representative, all defective products are to be returned with freight pre-paid via regular road transport to the branch where the goods were purchased or supplied. Learn more about our return policy.
About the Product

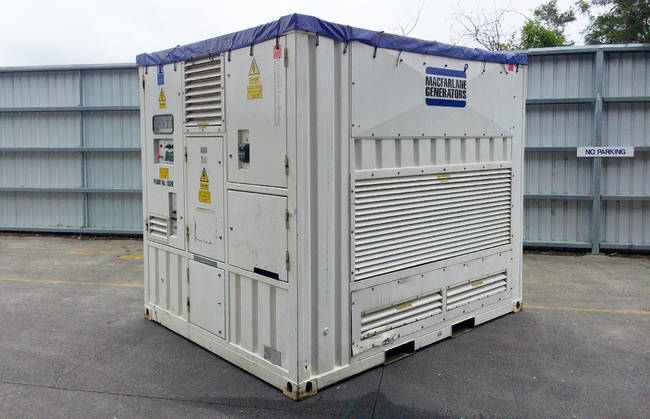

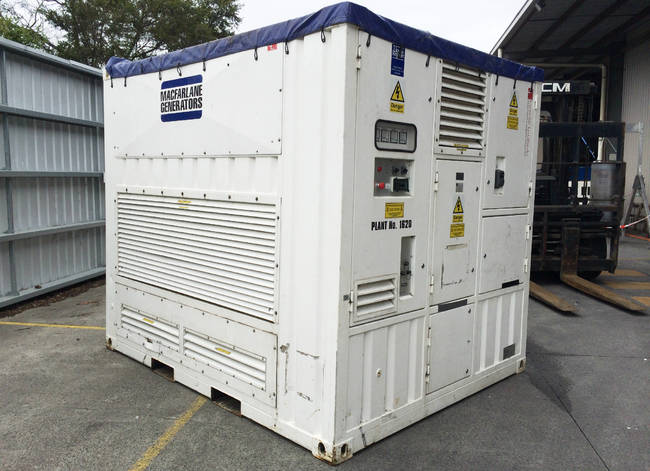

This Crestchic 3.3mVA loadbank is an all-weather unit, able to operate in all weather conditions and ambient temperatures up to 50 degrees (Celsius). It has capabilities to print, graph, and download professional diagnostic reports, and has an industry leading life span (15+ years reliability).
This unit is available for purchase or hire.
Specifications
| Capacity | 3.3MVA/ 2.64kW @ 415 volts, 50 Hz, 3 Phase, 0.8 PF. |
|---|---|
| Design Voltage | 415 volts, 50 Hz. Other voltages and frequencies available on request |
| Control System | KCS100H - Hand-held unit |
| Ambient Parameter | Maintain maximum capacity in ambient conditions up to 50° C |
| Air Flow | Side intake, top exhaust |
| Load Steps | A switching resolution of 1kW, 1kVAR is maintained at all loads up to 3.3MVA |
| System Extension | System extension for larger loads possible |
| Fan and Control Power | Via main bus or 70 amp, 415 volt, 3 phase external auxiliary supply |
