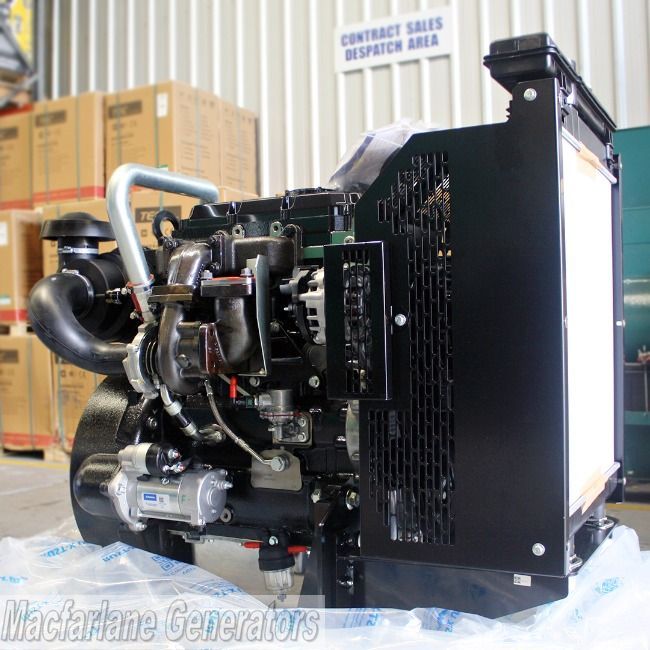

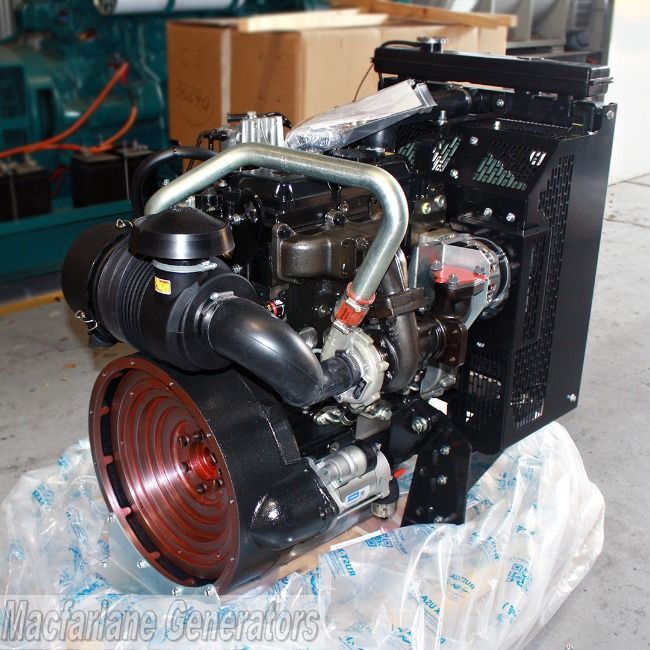

50-66kVA Perkins Engine Drive DK83398S
- Regular price
- $12,492.00
- Sale price
- $12,492.00
- Regular price
-
With the Procuret payment platform, you can finance with a minimum of $1,500 and up to $75,000 worth of products and services, subject to terms and credit eligibility criteria. Learn more about our financing options.
Shipping costs depend on the weight and size of your order. For most items you'll see an estimated freight cost above (with the exact amount confirmed at checkout); for large freight-arranged units we'll confirm cost before dispatch, usually within 1 business day. Learn more about our shipping costs.
After written consent has been given by our authorised representative, all defective products are to be returned with freight pre-paid via regular road transport to the branch where the goods were purchased or supplied. Learn more about our return policy.
About the Product
The Perkins® 1103 range of electric power engines delivers cost-effective solutions for both prime and standby power generation. Designed to meet EU Stage IIIA / U.S. EPA Tier 3 equivalent emission standards, these engines combine compliance with efficiency.
With exceptional fuel economy in prime power applications and outstanding load acceptance for standby installations, the 1103 range ensures reliable, efficient performance across diverse operating conditions.
ENGINE 1103A-33TG1
Specifications
| Gross Mechanical Output | 42 - 70 kWm |
|---|---|
| Rated Speed | 1500 rpm |
| Emissions | Fuel Optimised |
| Electrical Output 50HZ | Prime 45-60kVA Standby 50-66kVA |
| Cylinders | 3 Vertical Inline |
| Bore & Stroke | 105 x 127mm |
| Displacement | 3.3 I |
| Compression Ratio | 17.3:1 |
| Aspiration | Turbocharged |
| Combustion System | Direct injection |
| Rotation | Anti-clockwise |
| Typical Alternator Efficiency | 89% |
| Cooling System | Liquid |
| Weight (kg) | Dry: 420kg |
| Dimensions (LWH) | 1150 x 760 x 1300 mm |
