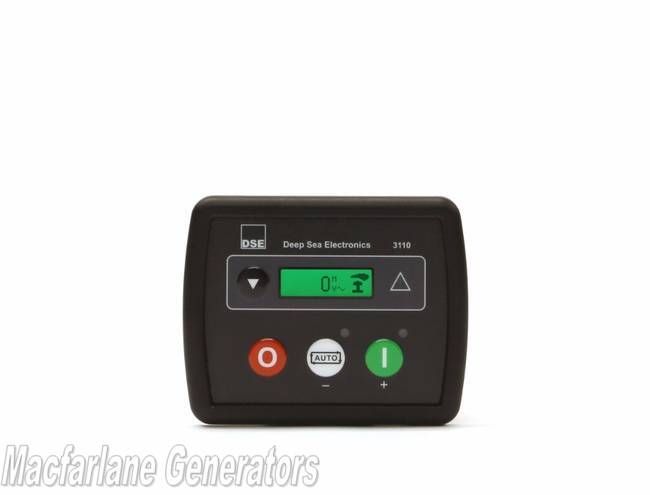

DSE3110 Manual and Autostart Module
- Regular price
- $294.00
- Sale price
- $294.00
- Regular price
-
With the Procuret payment platform, you can finance with a minimum of $1,500 and up to $75,000 worth of products and services, subject to terms and credit eligibility criteria. Learn more about our financing options.
Shipping costs depend on the weight and size of your order. For most items you'll see an estimated freight cost above (with the exact amount confirmed at checkout); for large freight-arranged units we'll confirm cost before dispatch, usually within 1 business day. Learn more about our shipping costs.
After written consent has been given by our authorised representative, all defective products are to be returned with freight pre-paid via regular road transport to the branch where the goods were purchased or supplied. Learn more about our return policy.
About the Product
The DSE3110 is an outstanding compact control module that provides a comprehensive range of features for single-set applications. The controller can be used in manual or auto start mode.
Specifications
| Notes | DC SUPPLY |
|---|---|
| Continuous Voltage Rating | 8V to 35V Continuous |
| Cranking Dropouts | Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. |
| Charge Fail/ Excitation | 8V to 35V fixed power source 2.5W |
| Nominal Standby Current | 23mA at 12 V, 18mA at 24V |
| Maximum Operating Current | 35mA at 12V, 30mA at 24V | OUTPUTS |
| Output A (Fuel) | 2 A DC at supply voltage |
| Output B (Start) | 2 A DC at supply voltage |
| Auxiliary Outputs C & D | 2 A DC at supply voltage | GENERATOR |
| Voltage Range | +/- 0.5 V to 70 V |
| Frequency Range | 10,000 Hz (max) |
