DSE4520 MKII Auto Mains Failure Control Module
- Regular price
- $1,089.00
- Sale price
- $1,089.00
- Regular price
-
With the Procuret payment platform, you can finance with a minimum of $1,500 and up to $75,000 worth of products and services, subject to terms and credit eligibility criteria. Learn more about our financing options.
Shipping is calculated on weight and dimensions of an order. Shipping will be calculated at the checkout page. In some cases, quotes may be required for shipping. Learn more about our shipping costs.
After written consent has been given by our authorised representative, all defective products are to be returned with freight pre-paid via regular road transport to the branch where the goods were purchased or supplied. Learn more about our return policy.
About the Product

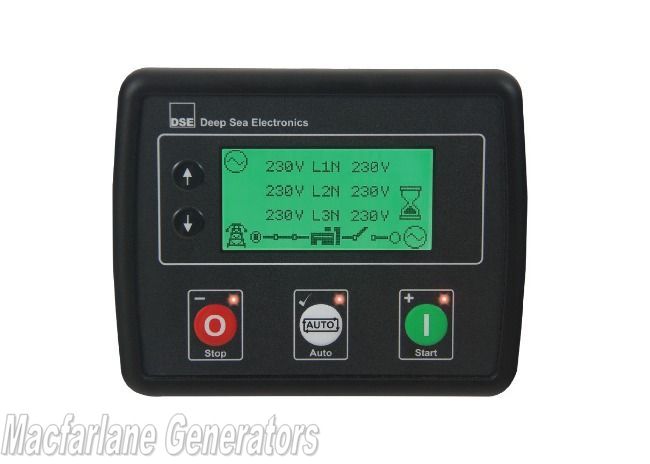

The DSE4520 MKII is a compact Auto Mains (Utility) Failure Control Module that has been developed to provide an outstanding range of features within a compact enclosure.
THE MODULE CAN BE CONFIGURED FOR USE AS AN AUTO START CONTROL MODULE.
Specifications
| Notes | DC SUPPLY |
|---|---|
| Continuous Voltage Rating | 8V to 35V Continuous |
| Cranking Dropouts | Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking. |
| Maximum Operating Current | 85mA at 12V, 96mA at 24V |
| Maximum Standby Current | 51 mA at 12 V, 47 mA at 24 V |
| Maximum Sleep Current | 35 mA at 12 V, 32 mA at 24 V |
| Maximum Deep Sleep Current | <10 uA at 12 V, <10 uA at 24 V | OUTPUTS |
| Outputs A (Fuel) | 10 A short term, 5 A continuous, at supply voltage |
| Outputs B (Start) | 10 A short term, 5 A continuous, at supply voltage |
| Auxiliary Outputs C & D | 2 A DC at supply voltage | GENERATORS |
| Voltage Range | 15 V to 415 V AC (Ph to N), 26 V to 719 V AC (Ph to Ph) |
| Frequency Range | 3.5 Hz to 75 Hz |
