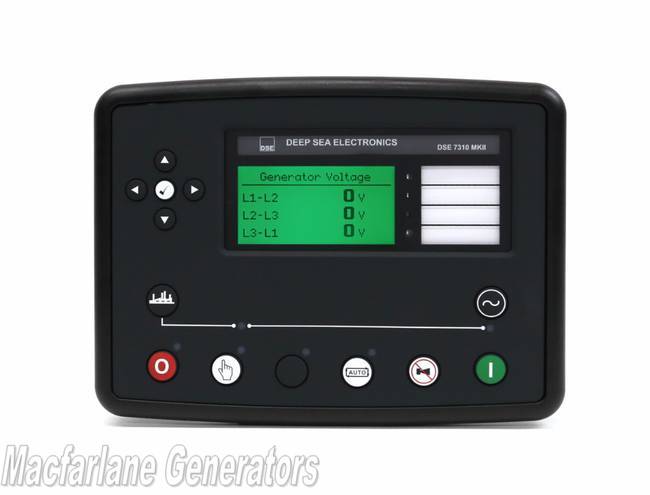

DSE7310MKII Auto Start Control Module
- Regular price
- $1,800.00
- Sale price
- $1,800.00
- Regular price
-
With the Procuret payment platform, you can finance with a minimum of $1,500 and up to $75,000 worth of products and services, subject to terms and credit eligibility criteria. Learn more about our financing options.
Shipping costs depend on the weight and size of your order. For most items you'll see an estimated freight cost above (with the exact amount confirmed at checkout); for large freight-arranged units we'll confirm cost before dispatch, usually within 1 business day. Learn more about our shipping costs.
After written consent has been given by our authorised representative, all defective products are to be returned with freight pre-paid via regular road transport to the branch where the goods were purchased or supplied. Learn more about our return policy.
About the Product
The DSE7310 MKII is a powerful, new generation auto start genset control module with a highly sophisticated level of new features and functions, presented in the usual DSE user-friendly format. Suitable for a wide variety of single, diesel or gas Gen-set applications.
The DSE7310MKII Featurs a new Dual Core main processor and extended memory, the module provides faster and more powerful processing power, returning faster operational responses on intensive applications and increased functionality, with data logging facility.
Monitoring an extensive number of engine parameters, the module will display warnings, shutdown and engine status information on the back-lit LCD screen, illuminated LED's, remote PC's and via SMS text alerts (with external communication device).
Specifications
| Notes | DC SUPPLY |
|---|---|
| Continuous Voltage Rating | 8 V to 35 V Continuous 5 V for up to 1 minute |
| Cranking Dropouts | Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking. |
| Maximum Operating Current | 510 mA at 12 V, 240 mA at 24 V |
| Maximum Standby Current | 330 mA at 12 V, 160 mA at 24 V |
| Charge Fail/Excitation Range | 0 V to 35 V | OUTPUTS |
| Output A (Fuel) | 15 A DC at supply voltage |
| Output B (Start) | 15 A DC at supply voltage |
| Outputs C & D | 8 A 250 V (Volt free) |
| Auxiliary Outputs E, F, G & H | 2 A DC at supply voltage | GENERATOR & MAINS UTILITY |
| Voltage Range | +/- 0.5 V to 70 V |
| Frequency Range | 10,000 Hz (max) |
