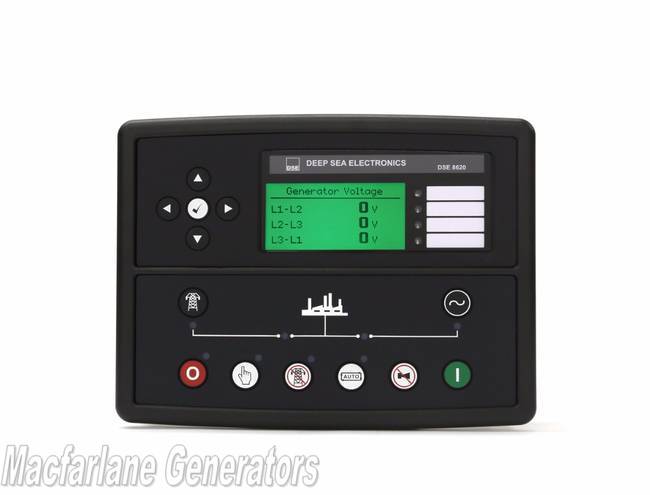

DSE8620 MKII Load Sharing & Synchronising Control Module
- Regular price
- $3,845.00
- Sale price
- $3,845.00
- Regular price
-
$4,180.00
With the Procuret payment platform, you can finance with a minimum of $1,500 and up to $75,000 worth of products and services, subject to terms and credit eligibility criteria. Learn more about our financing options.
Shipping is calculated on weight and dimensions of an order. Shipping will be calculated at the checkout page. In some cases, quotes may be required for shipping. Learn more about our shipping costs.
After written consent has been given by our authorised representative, all defective products are to be returned with freight pre-paid via regular road transport to the branch where the goods were purchased or supplied. Learn more about our return policy.
About the Product
Synchronising & Load Sharing Auto Mains (Utility) Failure Control Module.
The DSE8620 is an intelligent mono display auto mains (utility) failure load share control module packed with industry leading features to enhance paralleling single gensets with a mains (utility) supply.
The DSE 8620 automatically controls the change over between mains (utility) and generator power and can also be configured to run a generator in synchronisation with a mains (utility) supply.
Specifications
| Notes | DC SUPPLY |
|---|---|
| Continuous Voltage Rating | 8 V to 35 V Continuous |
| Cranking Dropouts | Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. |
| Maximum Operating Current | 460 mA at 12 V, 245 mA at 24 V |
| Maximum Standby Current | 375 mA at 12 V, 200 mA at 24 V |
| Charge Fail/Excitation Range | 0 V to 35 V | OUTPUTS |
| Output A (Fuel) | 15 A DC at supply voltage |
| Output B (Start) | 15 A DC at supply voltage |
| Outputs C & D | 8 A 250 V (Volt free) |
| Auxiliary Outputs E, F, G, H, I & J | 2 A DC at supply voltage | GENERATOR & MAINS |
| Voltage Range | +/- 0.5 V to 70 V |
| Frequency Range | 10,000 Hz (max) | BUILT IN GOVERNOR AND AVR CONTROL |
| Minimum Load Impedance | 1000Ω Fully isolated |
| Gain Voltage | 0 V to 10 V DC Fully isolated |
| Offset Voltage | +/- 10 V DC Fully isolated |
