Commercial & Industrial / Bunded Fuel Tanks

Bunded Fuel Tanks

Macfarlane MAXIBund is an innovative design accompanied by the highest quality in manufacturing. Our range of products designed to provide effective fuel storage and transport solutions while protecting your environment. We have and extensive range of high quality bunded fuel tanks for the construction, agricultural and industrial sectors.


Sort: Product Name, Price

Macfarlane MaxiBund

Macfarlane MaxiBund is an innovative design accompanied by the highest quality in manufacturing. Our range of products designed to provide effective fuel storage and transport solutions while protecting your environment. We have and extensive range of high quality bunded fuel tanks for the construction, agricultural and industrial sectors.


Why Choose Macfarlane MAXIBund Fuel Tanks?

  • All Tanks designed to meet ADR and UN Certification.
  • 110% bunded in accordance with current environmental legislations.
  • All tanks manufactured from high grade mild steel and are treated with a 2 pac paint.
  • All tanks are stackable 3 units high for better storage (2 units high when full).
  • Pressure tested inner tank.
  • Lockable for security.
  • All tanks come with fork pockets and lifting eyes as standard.
  • All tanks have a removable lid for easy maintenance and an inspection hatch on the inner tank.
  • All tanks contain inner baffle plates for safer transport.
  • All tanks come with a breather, pressure release valve and a visual fuel gauge as standard.
  • All tanks come with at least 2 supply and return fuel connections.
  • All tanks come with a 2 year guarantee.
  • Optional: Electronic fuel senders



Macfarlane MAXIBund Specifications


Model

Capacity

Dimensions

Weights

Ltrs

Length

Width

Height

Dry (KG)

Wet (KG)

MB450

450
(420 safe fill)

1300

1000

750

380

785

MB950

950
(860 safe fill)

1670

1050

1235

673

1573

MB2000

2000
(1800 safe fill)

2550

1130

1235

960

2760

MB3000

3000
(2700 safe fill)

2550

1650

1235

1053

3753

MB4500

4500
(4100 safe fill)

3000

2000

1235

1300

5350

MB6300

6300
(5950 safe fill)

3560

2166

1235

1800

7470


About Bunded Fuel Tanks


Bunded fuel tanks are used for a range of applications from power generation to fuel transport. These tanks are designed specifically to protect the environment from leakages of liquid causing harm and pollution. An internal tank holds the stored liquid, should this tank rupture. The outer tank contains the fuel, preventing any leakage. At this stage the fuel can be removed safely and the inner tank repaired/replaced, with no harmful effects to the environment.

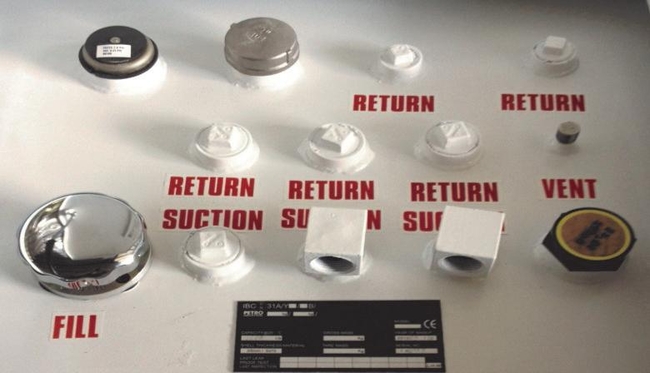

Internal Arrangement


All Macfarlane MAXIBund tanks come with the arrangement shown as standard. Bespoke solutions can be arranged on demand to suit your specific requirements. There are 3 supply/return connections for supplying multiple units. A pressure release valve and an air vent is installed on all tanks to which meets stringent European fuel transport legislation. A Lockable hatch with 2 gas struts is used to keep all connections safe, and inside the bund.



Baffle Plates For Safe Transport


Baffle plates are installed on all tanks to keep the load under control during transport. This system divides the tank into compartments and stops the liquid swaying from side to side and gaining unified momentum. Cut-outs on the corners and centre of these plates allow a controlled flow of liquid between the chambers.
