Leroy Somer D550 AVR

On Sale!
$3,748.80$3,151.50 inc GST($2,865.00 ex GST)
The Macfarlane Advantage
  • Oil
  • Run-Up
  • Load Tested
Every generator we sell is:
  • Filled with oil at no extra cost
  • Run & load tested to rated capacity
  • Ready to use as soon as you receive it
Trust your generator with Macfarlane Generators, a real generator company that has been operating for 70+ years.

We stock a full range of spares, run a full service department, have stores across Australia and employ an experienced team with extensive generator knowledge

We provide the best generator sales and after-sales support in Australia.

Free Shipping Australia Wide

Genuine Leroy Somer D550 digital automatic voltage regulator (AVR) provides excitation current up to 7A with excellent reliability and precision for SHUNT, permanent magnet (PMG) or AREP (auxiliary winding) excitation types.

Designed to fit LSA40 to LSA52.3 alternators with SHUNT, permanent magnet (PMG) or AREP (auxiliary winding) excitation types.

For additional information on the Leroy Somer D550 AVR please call us!

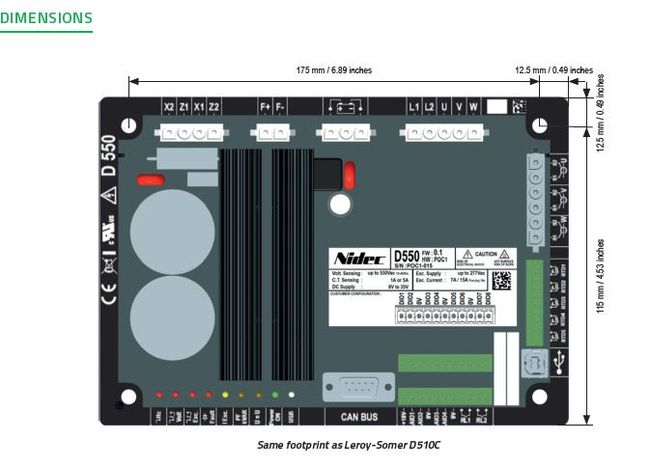

The new D550 replaces the D510 and D510C

Details

D550 includes advanced protections such as over-excitation limitation and voltage sensing loss, and also features voltage droop for Genset parallel operation. The D550 is also equipped with a Load Acceptance Module (LAM) to handle load impact events.

The D550 AVR is also optimized for grid paralleling operation, and complies with the latest grid code regulations, including the latest German grid code regulations VDE 4110 and VDE 4105. In this context, the D550 also includes active & reactive reverse power alarms.

Key specifications

TechnologyDigital
Excitation modeSHUNT, AREP, PMG
Rated excitation current7 A
Regulation accuracy (+/- %)0.25 %
Frequency range10 – 400 Hz
Voltage setting range (+/- %)30 %
kU/F limitation0.5 < k< 3
Loss of sensing voltage✓
Over-excitation limitation✓
Short circuit current limitation✓
Voltage droop✓
Parallel operation between alternators✓
Load Acceptance Module (LAM)✓

Compatible products

  • LSA 40
    LSA 42.3
    LSA 44.3
    LSA 46.3
    LSA 47.2
    LSA 49.3
    LSA 50.2
    LSA 180-225 (400Hz)

Configuration & setup

D550 can be configured using the Leroy-Somer EasyReg Advanced software.

Related Downloads
Leroy Somer D550 AVR - Macfarlane Generators (841.80KB)Leroy Somer D510C AVR (1.21MB)
